Cyberamic Head Sheet Metal
Cyberamic Head Sheet Metal Measurement Chart. (Mar. 2, 2025)
Variants
Three variants of the head fully assembled were present in order lists.- Part #000-0044-10 was the standard head for Chuck, Guest/Helen, Munch, and Jasper.
- Part #000-0044-20 was for Pasqually.
- Part #000-0044-30 was for Artie and Dollie.
Pizza Time Theatre Produced
- 1980 - Currently Unknown Changes
- Early 1981 - No top bend, thin steel.
- Late 1981 - No top bend
- Early 1982 - Top bend facing forward
- Early 1983 - Potentially a different yellow zinc coating that was more resilient to deterioration over time.
Kinetix Produced
- Around 1991 - Refurbished PTT frames which used a different mouth mount, different eye turn mechanism, and were re-tubed.
- 1991 - Eyelid cylinder slot rounded out, different mouth mount. Removed two holes on the bottom right used for pilot valves.
Animation World Produced
- Around 1994 - Top bend facing backward, back to using the original mouth mount.
- Last Batches - Black colored metal.
Certain bots with the usual two holes below the eye cavity have an extra one between them. This appears mostly on the right eye, once confirmed on the left eye, and once confirmed on both. The assembly usually inserted in the two holes would sometimes be inserted in this middle hole, likely meaning it was a modification made in-store when the bottom hole occurred too much stress and wear.
Measurements
As a full set of confirmed measurements is not available, multiple partial lists are available to varying accuracy.| Type | Measure 1(mm)(1) | Measure 2 (mm)(2) |
| A | 55.5625 | 60 |
| B | 117.475 | 113.14 |
| C | 182.5625 | 185 |
| D | 20.6375 | 23.5 |
| E | 12.7 | 13 |
| F | 87.3125 | 60.81 |
| G | 88.9 | 88.5 |
| H | 14.2875 | 10.5 |
| I | 104.775 | 56.75 |
| J | 206.375 | 210 |
| K | 103.1875 | 104 |
| L | -- | 139.75 |
| M | -- | -- |
| N | 31.75 | 31.25 |
| O | 19.05 | -- |
| P° | -- | -- |
| Q° | -- | -- |
| R° | -- | -- |
| S | 114.3 | 117 |
| T | -- | -- |
| U | -- | -- |
| V | -- | -- |
| W | -- | -- |
| X | -- | -- |
| Y | -- | -- |
| Z | 365.125 | 368 |
| ZA | 71.4375 | 68.75 |
| ZB | -- | -- |
| ZC | -- | 10 |
| ZD | -- | -- |
| ZE | -- | -- |
| ZF | -- | -- |
| ZG | -- | -- |
| ZH | -- | 20.75 |
| ZI | -- | -- |
| ZJ | -- | -- |
| ZK | 19.05 | 5.5 |
| ZL | -- | -- |
| ZM | -- | -- |
| ZN | 25.4 | -- |
| ZO | -- | -- |
| ZP | -- | 193.75 |
| ZQ | -- | 200.775 |
Hole Mounts
| Type | Description |
| Z-G | Each of the 4 identical holes will need a #8-32 x 1/2 in. Round Head Phillips inserted from the front, with both sides using a #8 Split Lock washer and a Flat washer. |
References
- @mechadise_ig
- https://www.reddit.com/r/Animatronics/comments/18neflf/3d_printed_cyberamic_mech/
- http://www.showbizpizza.com/info/documents/ptt/ptt_cyberamicspartsmanual.pdf
- @ShadowRCX "It's more than likely standard A36 Carbon Still with a Yellow Zinc Plating to prevent rusting. Same as most grade 8 yellow zinc plated bolts lol. I'm like 99% sure, they wouldn't need to plate stainless and it's makes no sense to use anything but normal carbon steel. Everything else would be way overkill. It's cheaper to not plate or not use a dyed plating. But obviously plating is better than none for rust prevention. But yes they probably went to a lower grade plating over time. That's why they aren't yellow. Maybe normal zinc plating or nickel plating"
- Cyberamics from Kooser sold on Ebay in 2021 show yellow-zinc plating.
(Outdated, Inaccurate) Cyberamic Neck Bracket Measurements ()
(Outdated, Inaccurate) Cyberamic Mask Measurements ()
(Outdated, Inaccurate) Cyberamic Eye Measurements ()
(Outdated, Inaccurate) Cyberamic Mouth Lever Measurements ()
Cyberamic Cylinder Chart ()

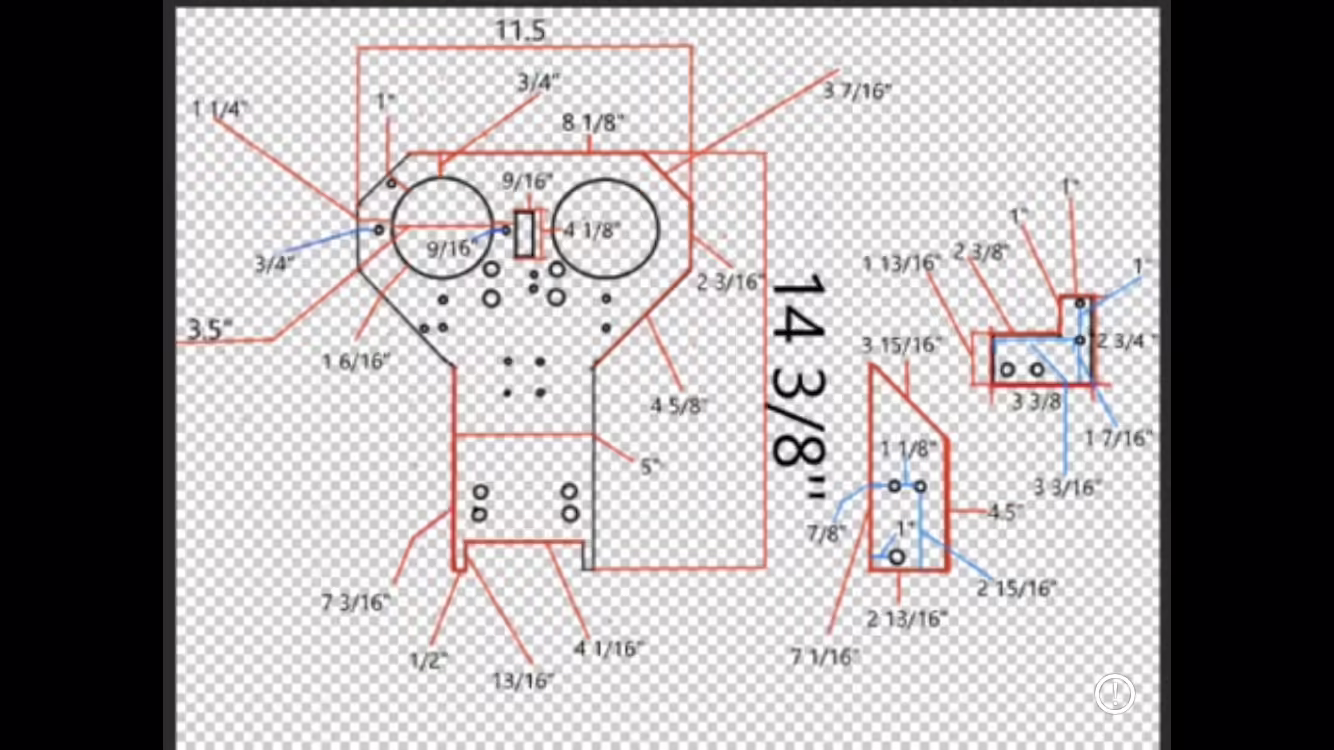

(Outdated, Inaccurate) Cyberamic Head Measurements ()
